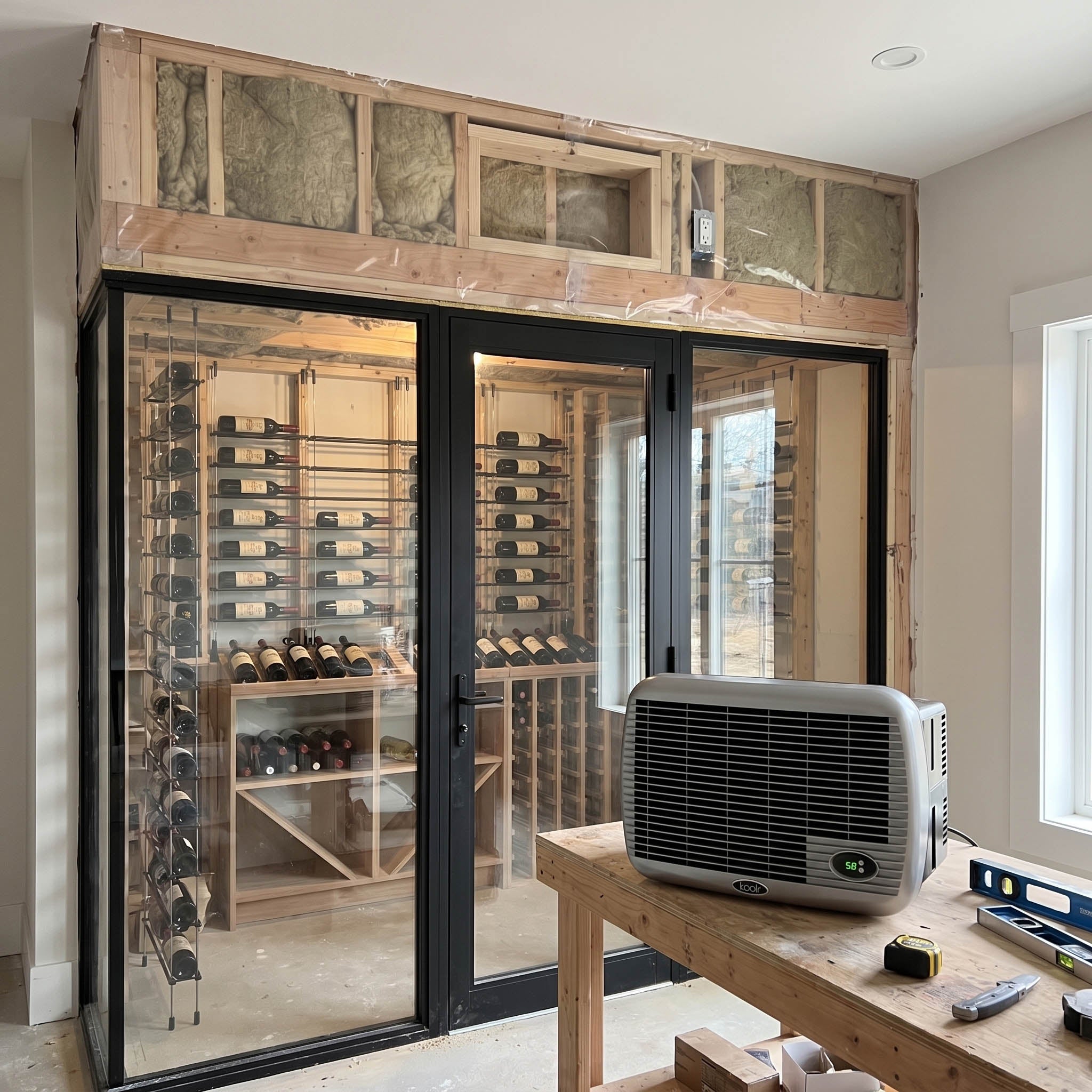

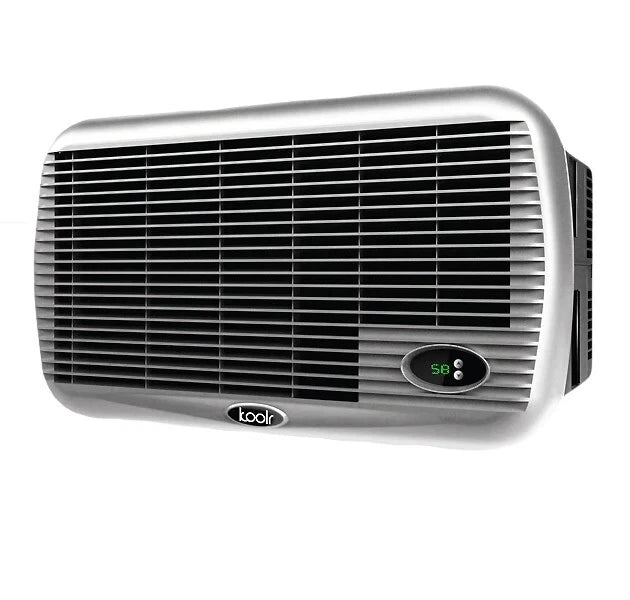

KoolR through-the-wall wine cellar cooling unit

Through-wall wine-room cooling

Kool-R Magnum

Name: Kool-R Magnum
Brand: Kvsche
Price: 1650.00 CAD
Availability: InStock

A self-contained cooling unit for properly built indoor wine rooms up to approximately 900 cubic feet.

Kool-R Magnum $1,650.00

In stock

Import fees covered by Kvsche. For U.S. customers.

Ask Kvsche to review fitment

Nominal capacity Up to 900 ft³For a properly built and insulated room

Wall opening 15½ × 9½ inConfirm with the supplied template

Wall thickness Up to 6½ inStandard installation

Manufacturer warranty 1 yearManufacturing defects

The Magnum can be an excellent compact solution when three things are right: the cellar envelope, the wall opening, and the warm-side room. Confirm all three before ordering or cutting.

Delivery timing shown at checkout. Choose from the available shipping options before payment.

24-hour cancellation window. Cooling-unit orders may be cancelled within 24 hours of purchase.

One-year manufacturer warranty. Covers approved manufacturing defects; Kvsche coordinates approved replacement pickup.

Three checks before you buy

Start with the room, the wall, and the warm side.

01 / Capacity

Will it cool my room?

The Magnum is rated for a well-insulated wine room up to approximately 900 cubic feet. Treat that as a starting point: glass, weak insulation, air leaks, heated floors, sunlight, and a hot warm-side room reduce real-world capacity.

Read the sizing guide

02 / Opening

Will it fit my wall?

Plan for a nominal 15½-inch-wide by 9½-inch-high opening. The standard installation supports walls up to 6½ inches thick. Use the supplied installation template and verify the site before cutting.

Review installation requirements

03 / Conditions

What does installation require?

The warm side must exhaust into a large, ventilated, air-conditioned interior space. The cellar needs R-20 insulation, a vapor barrier, a sealed insulated door, unobstructed airflow, and a dedicated grounded 15A 115V supply.

See the complete buying guide

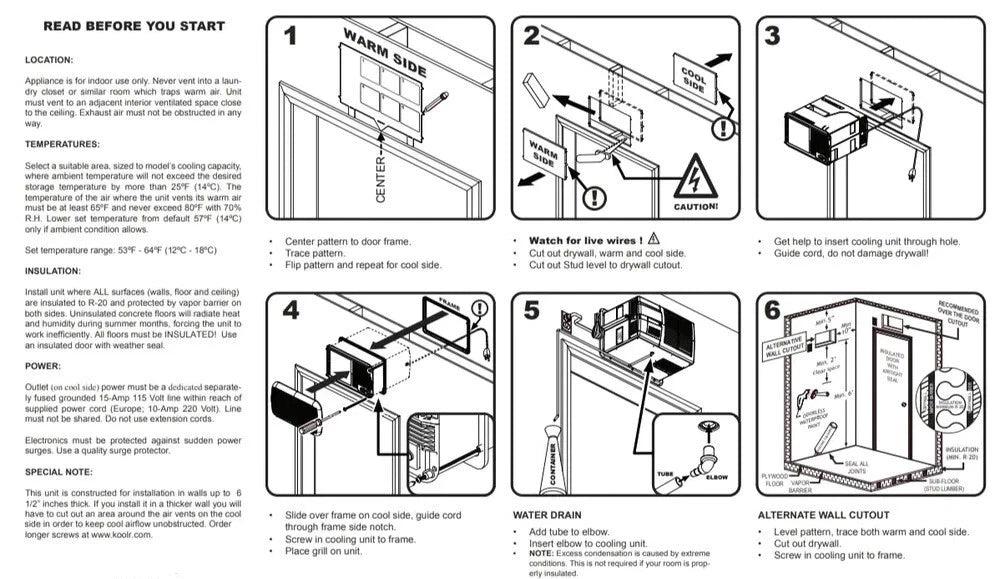

KoolR installation guide diagram for warm side and cool side

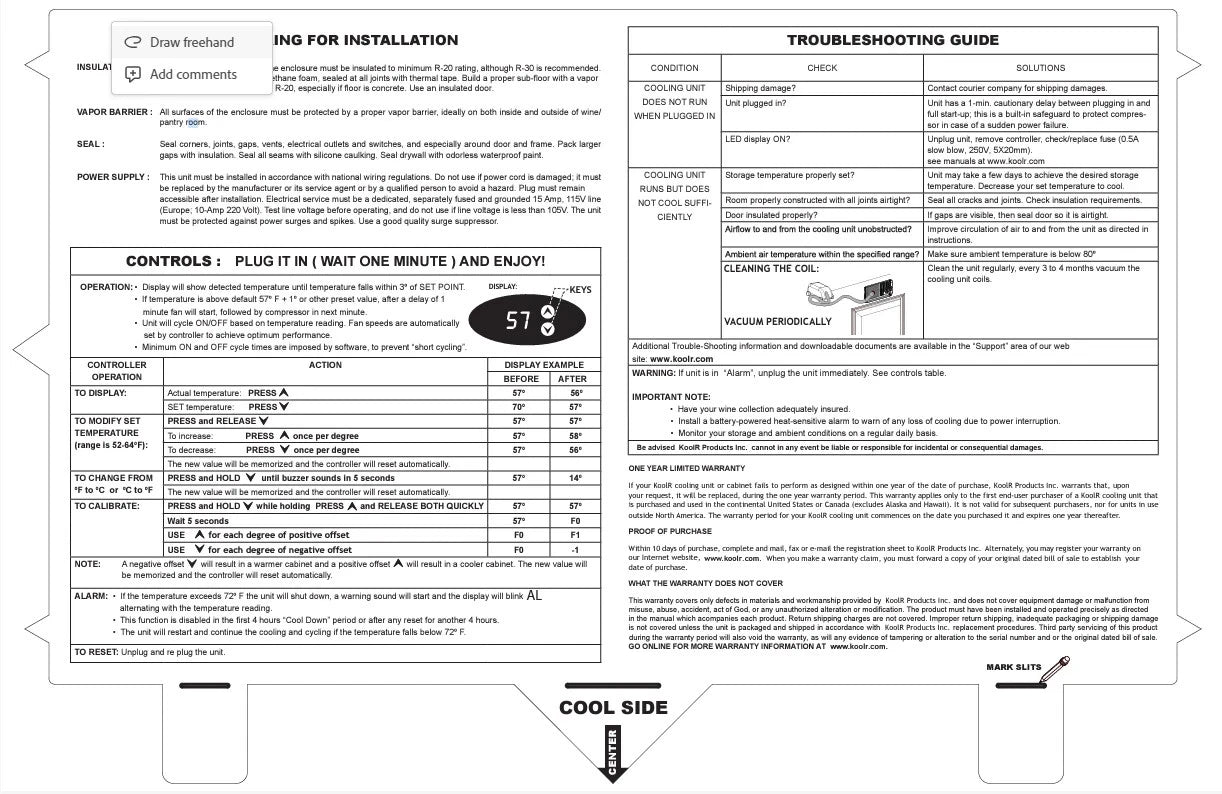

KoolR controls and troubleshooting guide diagram

Installation overview

Prepare the room before cutting the wall opening.

A successful installation depends on the room envelope and the adjacent space—not only the opening. Confirm these conditions before ordering trades or cutting the wall.

Vent warm air into an adjacent interior ventilated space, not a laundry closet, garage, or trapped-air room.
Insulate the walls, floor, and ceiling to at least R-20, install a vapor barrier, and seal all penetrations and joints.
Use an insulated door with weather seal.
Keep the warm-side exhaust and cool-side intake unobstructed. Do not add ducting to the unit.
Rest the unit flat for at least two hours, bench-test it for at least ten minutes, and use two people for installation.
Provide a dedicated, separately fused, grounded 15A 115V receptacle on the cool side. Use a quality surge protector and never an extension cord.

This overview does not replace the installation guide. Site conditions vary; a qualified installer or electrician may be required.

Key specifications

Set temperature: 53°F-64°F / 12°C-18°C
Electrical: Dedicated, grounded 15A 115V line; minimum 105V
Room build: Indoor use only; R-20 minimum insulation, vapor barrier, sealed insulated door
Protection: Use a surge protector; do not use extension cords
Nominal capacity: Up to approximately 900 ft³ in a properly built room
Unit dimensions: 15½ W × 15½ D × 9½ H in
Nominal wall opening: 15½ W × 9½ H in; confirm with supplied template
Wall thickness: Up to 6½ in for standard installation
Warm-side ambient: 65°F minimum; never above 80°F at 70% RH
Temperature differential: Warm side no more than 25°F / 14°C above cellar setpoint
Warm-side airflow: Up to 200 CFM into a large, ventilated, air-conditioned interior space
Certifications: CSA, UL C and CE

See the airflow

Cold and Warm Airflow.

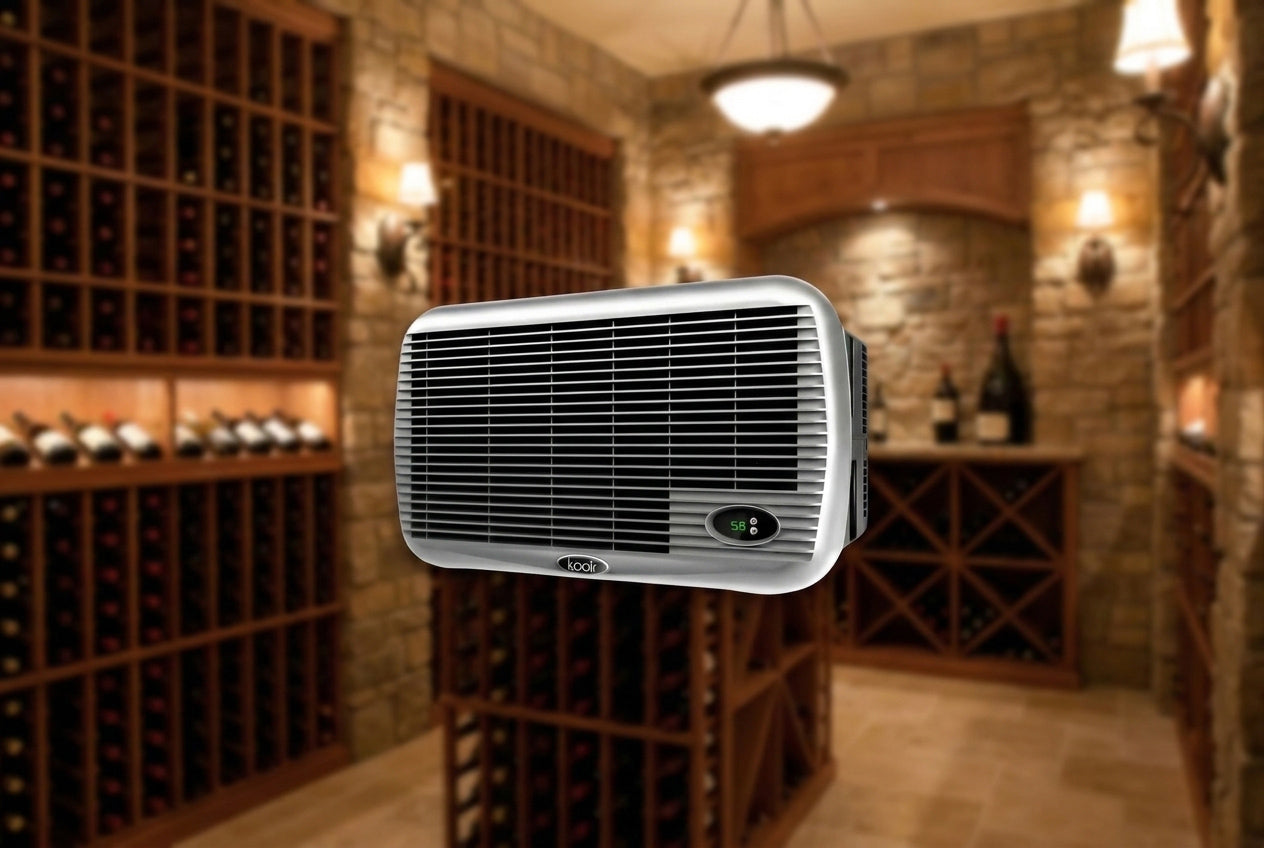

Beautiful silver grille facing finished side of the wine cellar.

Warranty and service

One clear path if a manufacturing defect is approved.

One-year manufacturer warranty

Manufacturing defects are covered for one year from purchase. Proof of purchase is required and the manufacturer determines the approved repair or replacement remedy.

Kvsche coordinates approved replacements

If the manufacturer approves a replacement, Kvsche will coordinate delivery and arrange pickup of the defective unit using a return label.

Optional add-on warranty

Additional warranty packages may be available. Contact Kvsche to confirm eligibility and pricing.

Ask Kvsche

Arrives damaged or appears defective?

Contact Kvsche promptly with photos and proof of purchase. Kvsche will coordinate the manufacturer warranty process for covered manufacturing defects.
