The most expensive time to discover an installation conflict is when the KoolR Magnum is unpacked and someone is already holding a saw.
I prefer to stop the work three times before that happens: before the walls close, before the wall opening and electrical rough-in are released, and before the racks and finishes are approved. Each pause answers a different question. Can the room hold the conditions? Can this wall accept the unit? Can the finished design leave enough room for the equipment to work and be serviced?
If any answer is missing, I keep that part of the work on hold.
The manuals should travel with the drawings
I do something fairly unglamorous when I first review a KoolR installation package. I place the floor plan, door schedule, electrical plan, and interior elevations beside one another. That is usually where the contradictions show themselves.
The floor plan may label the space as an insulated wine room while the door schedule shows ordinary interior hardware. The rack elevation can look complete while the electrical drawing puts the outlet behind a bottle column. The reflected ceiling plan may add lighting after the cooling load was considered.
No single drawing tells the whole story.
The KoolR Magnum installation template and the KoolR Magnum use and care guide belong with that drawing set. This article helps organize the decisions around those documents, but it does not replace them.
Our installers should also receive the physical template supplied with the exact unit. I do not transfer an opening size, wall-thickness note, or clearance from another retailer's page into a Kvsche installation package. Current online listings conflict. The supplied template and current manuals remain the source for the exact unit being installed.
There also needs to be one person controlling revisions. If someone changes the door, adds glass, deepens a rack, moves the outlet, or turns the warm-side room into a closet, the previous review no longer describes the same room.
You can find both current manuals on the Kvsche KoolR Magnum product page.

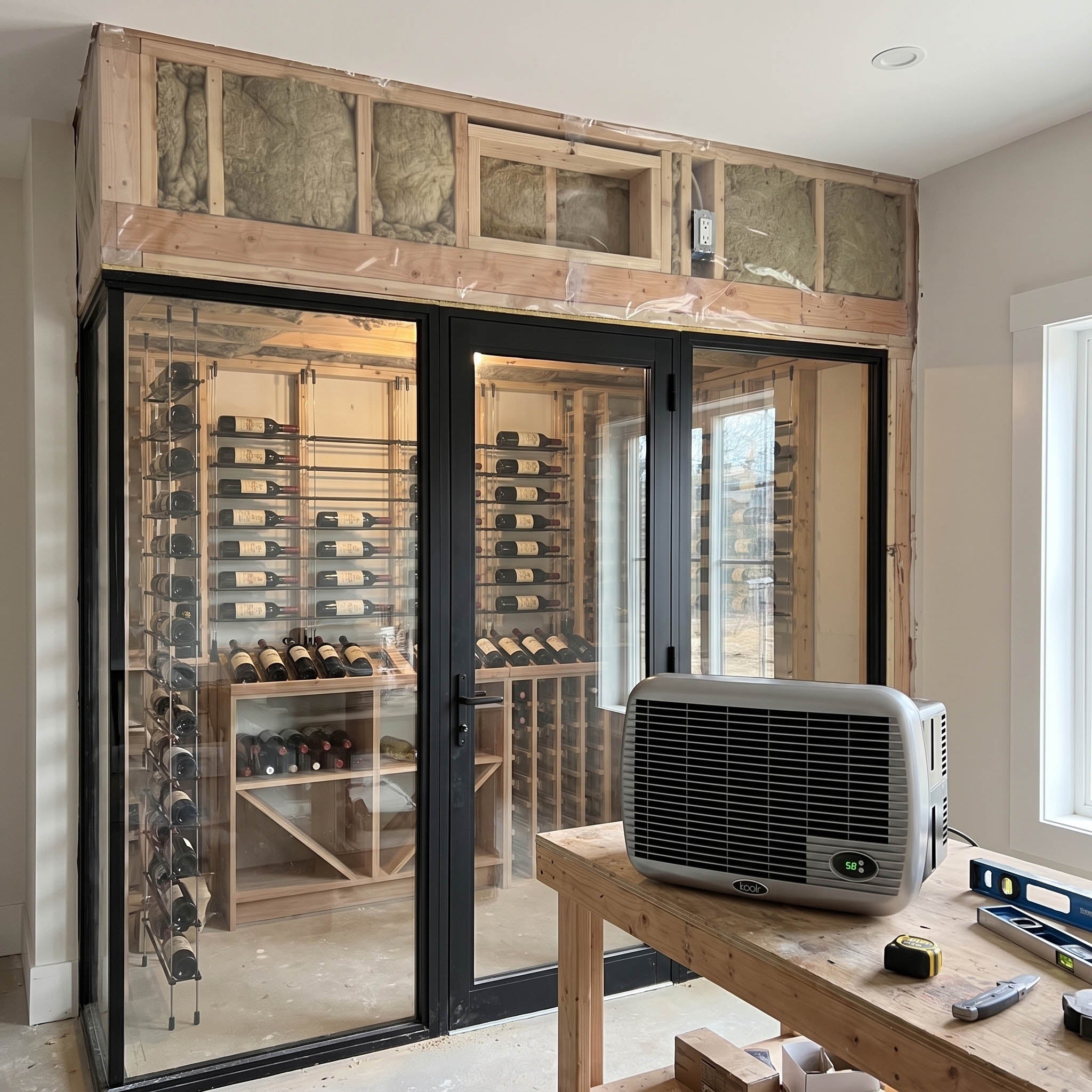

First hold: before the walls close
Drywall has a way of making unresolved details look finished. I want the room envelope settled before it disappears behind the final surface.
The KoolR manuals call for all walls, the ceiling, and the floor to be insulated to at least R-20. They also call for a vapor barrier, with the installation material specifying protection on both sides of the enclosure. Corners, joints, vents, switches, outlets, and the door frame all need a sealing plan.
For a Kvsche fitment review, the word “insulated” in a finish schedule is not enough. I want to see the actual assembly. Where does the insulation continue at the floor? What happens above the ceiling? How will electrical and other penetrations be sealed? Who has decided the vapor-barrier arrangement for this construction and local climate?
If the project team cannot point to those answers, I do not want the wall closed yet.
The distinction matters because the KoolR Magnum conditions an enclosed room. An open wine display in a dining room, kitchen, lounge, or hallway may have architectural presence, but it is not climate-controlled storage.
I release the door with the room envelope
I never treat the door as a decorative selection that can be resolved later. The manual calls for an insulated door with a weather seal. The frame, threshold, hardware, and full perimeter seal belong in the enclosure discussion.
A note that simply says “interior door” leaves too much unanswered.
Glass deserves the same scrutiny. The KoolR manual describes an R-20 opaque enclosure but does not assign a performance value to a glass wall or door. We record the glass area, assembly, exposure, and seals, then ask the appropriate wine-cellar or HVAC professional to consider the additional load. I do not give glass the wall's insulation value because it looks solid on an elevation.
The first hold is cleared when the team can show how the completed room will satisfy the current manual's enclosure requirements. A detail that exists only as an intention is not ready to cover with drywall.
Second hold: before the wall opening and electrical rough-in
The second pause is about everything our installer should not have to discover by trial.
The use and care guide prohibits installation in a fire wall, fire barrier, or fire partition. A builder, architect, engineer, or other qualified professional needs to identify what the wall does, whether it is structural, and what services are concealed inside it. Local structural and fire requirements still apply. A product template can show the opening; it cannot authorize an alteration to the building.
I want the electrician working from the same approved position. The guide calls for a dedicated, separately fused, grounded 15-amp, 115-volt supply on the cool side within reach of the supplied cord. It prohibits a shared circuit and extension cords, requires the plug to remain accessible, and calls for surge protection. A qualified electrician should confirm the circuit, grounding, voltage, outlet position, and local requirements.
I place the outlet on the interior elevation as well as the electrical plan. It is a small repetition with a useful purpose. The rack designer and installer can see the outlet beside the unit instead of discovering later that a bottle column covers it or the cord cannot reach.
Give the warm side an actual room name
I dislike the phrase “adjacent space” on a through-the-wall cooling drawing. It hides the most important question on that side of the wall.
What room is it?
The manuals call for an adjoining, ventilated, air-conditioned interior space near the ceiling. They rule out a garage, outdoor venting, a laundry closet or similar space that traps heat, and improvised ductwork. The proposed room also has to be checked against the manual's temperature, humidity, and airflow conditions.
For our review, I want the room named on the plan. I also want a photograph or elevation and a short note explaining how it is conditioned. A cabinet, bulkhead, shelf, or stack of stored objects can crowd the warm-side grille even when the room itself appears large enough on paper.
This hold remains in place until we have looked at both faces of the proposed wall. The KoolR passes through one wall, but the installation occupies two rooms.
Third hold: before racks and finishes are released
By the third review, the enclosure, wall, and electrical position should be settled. Now I want to see whether the finished room still allows the KoolR Magnum to breathe and be reached.
The manual says not to place racking close to the sides of the unit or directly below it. Both faces require unobstructed airflow and the clearances shown by the physical template for the exact installation.
On the cool-side elevation, I ask for the actual bottle depth, top shelves, lighting, trim, and outlet. On the warm-side elevation, I want nearby cabinets and anything mounted above or beside the grille. A decorative surround may improve the symmetry of the wall while quietly restricting airflow.
Symmetry is not clearance.
Our installers also need working access. A drawing can leave the front of the equipment visible while providing nowhere to grip the unit, guide the cord, remove the grille, or reach the coil for cleaning. I want the elevation to show how someone will work around the equipment, not merely how little of it the finished room will reveal.
If a rack and the KoolR want the same space, I move one of them before fabrication. Moving either after the racks arrive is a much worse conversation.
Installation day should not be the unit's first inspection
Delivery begins the installation sequence.
The use and care guide instructs the installer to inspect the KoolR Magnum for shipping damage and record the serial number. Before installation, the unit must rest horizontally for at least two hours. The guide then calls for a monitored tabletop test of at least ten minutes so the display, fans, compressor, and warm and cool airflows can be checked as described in the manual.
The manual requires two or more people to move and install the unit. The supplied frame and physical template should be on site before the opening is made, and the cord needs to be guided without damaging it or the finished wall.
These steps are easy to lose when delivery and installation share one narrow appointment. I put the inspection, rest period, test, serial-number record, and two-person lift directly into the installer's work order. Important instructions should not depend on someone finding the right email while the crew waits.
Every unanswered condition needs an owner
Kvsche can review the product fitment information and the proposed room direction. We cannot replace the professional responsible for the building, wiring, heat-load analysis, or local approval.
Before I release a package, I assign every open question:
- The builder or envelope professional confirms the insulation, vapor barrier, sealing, floor, and door preparation.
- The architect, engineer, builder, or another qualified professional resolves structure and fire separation.
- The electrician confirms the dedicated supply, outlet, grounding, voltage, and local electrical requirements.
- A wine-cellar or HVAC professional reviews glass, exterior exposure, unusual ambient conditions, and other factors requiring a heat-load assessment.
- The rack designer and installer coordinate airflow, working access, trim, and service space against the physical template.
If nobody owns an unanswered condition, it does not become harmless. It simply waits for the installer.
The three room-readiness decisions
I use three statuses when reviewing the construction package. None of them grants construction or code approval. They tell us whether detailed planning can continue.
| Status | What I expect to see | What happens next |
|---|---|---|
| Ready to plan | Current manuals and supplied template, resolved enclosure and door details, a reviewed interior wall, confirmed cool-side electrical service, a named warm-side room, and coordinated elevations for both faces. | Detailed installation planning can continue, and the package can be sent to Kvsche for fitment guidance. |
| Needs professional confirmation | Unknown structure or fire separation, unresolved glass or exterior exposure, incomplete floor or vapor-barrier details, unconfirmed electrical service, hidden utilities, or undocumented warm-side conditions. | Assign each open item to the qualified trade or professional and keep the affected hold in place. |
| Not suitable in its current form | An open wine display, exhaust into a garage, outdoors, a laundry closet, or another heat-trapping room, improvised ducting, a prohibited wall assembly, or an elevation blocking either face. | Revise the room, wall, exhaust location, rack plan, or cooling format before installation planning continues. |
“Ready to plan” is intentionally cautious. The installer still needs the exact unit, current manuals, physical template, verified site conditions, and all required local approvals.
The package I want our installers to receive
Before the opening is released, I want one coordinated package containing:
- the current installation template and use and care guide for the exact KoolR Magnum;
- a dimensioned floor plan naming the wine room and the warm-side room;
- cool-side and warm-side elevations showing racks, cabinets, trim, lighting, the outlet, and access around the unit;
- the approved insulation, vapor-barrier, sealing, door, floor, and glass details;
- written confirmation of the wall condition, fire-separation review, and electrical rough-in;
- photographs of both sides of the wall before close-in, when available; and
- an installation-day plan covering receipt inspection, the rest period, tabletop test, serial-number record, and two-person lift.
My final check is simple: every decision must appear in the drawing, schedule, sign-off, or work order that reaches the installer. If an answer exists only in someone's inbox, it is still too easy to lose.
Review the current KoolR Magnum manuals and product details, then send Kvsche the coordinated room package and photographs of both wall faces. We can review the proposed direction before the opening is released. The current manuals and qualified local professionals remain the final references for installation and site approval.
