Specification guide

Skyline Series: Single Skyline

Dimensional planning, installation preparation, and product specifications for the Single Skyline floor-to-ceiling wine display system.

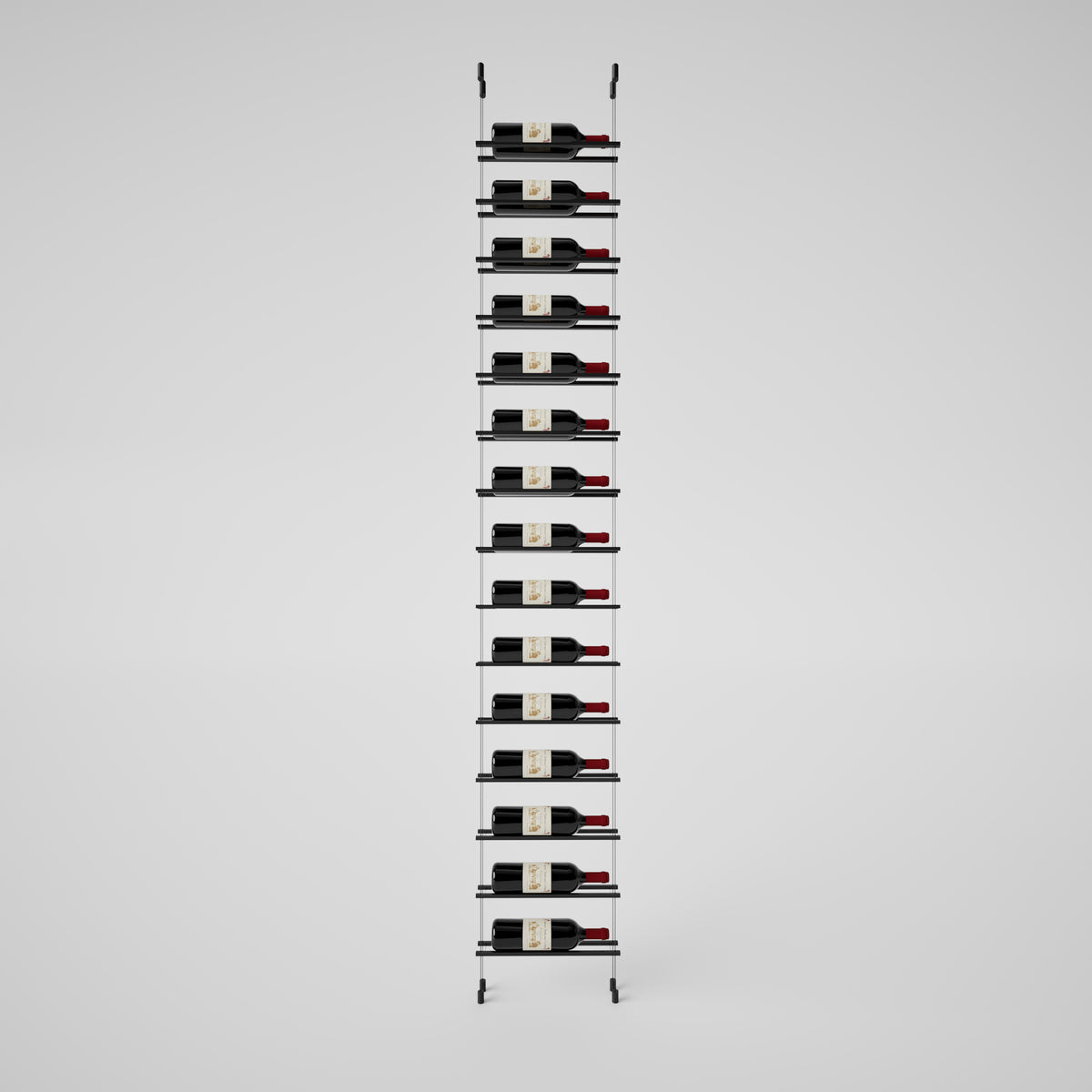

Single Skyline display system — Single Skyline

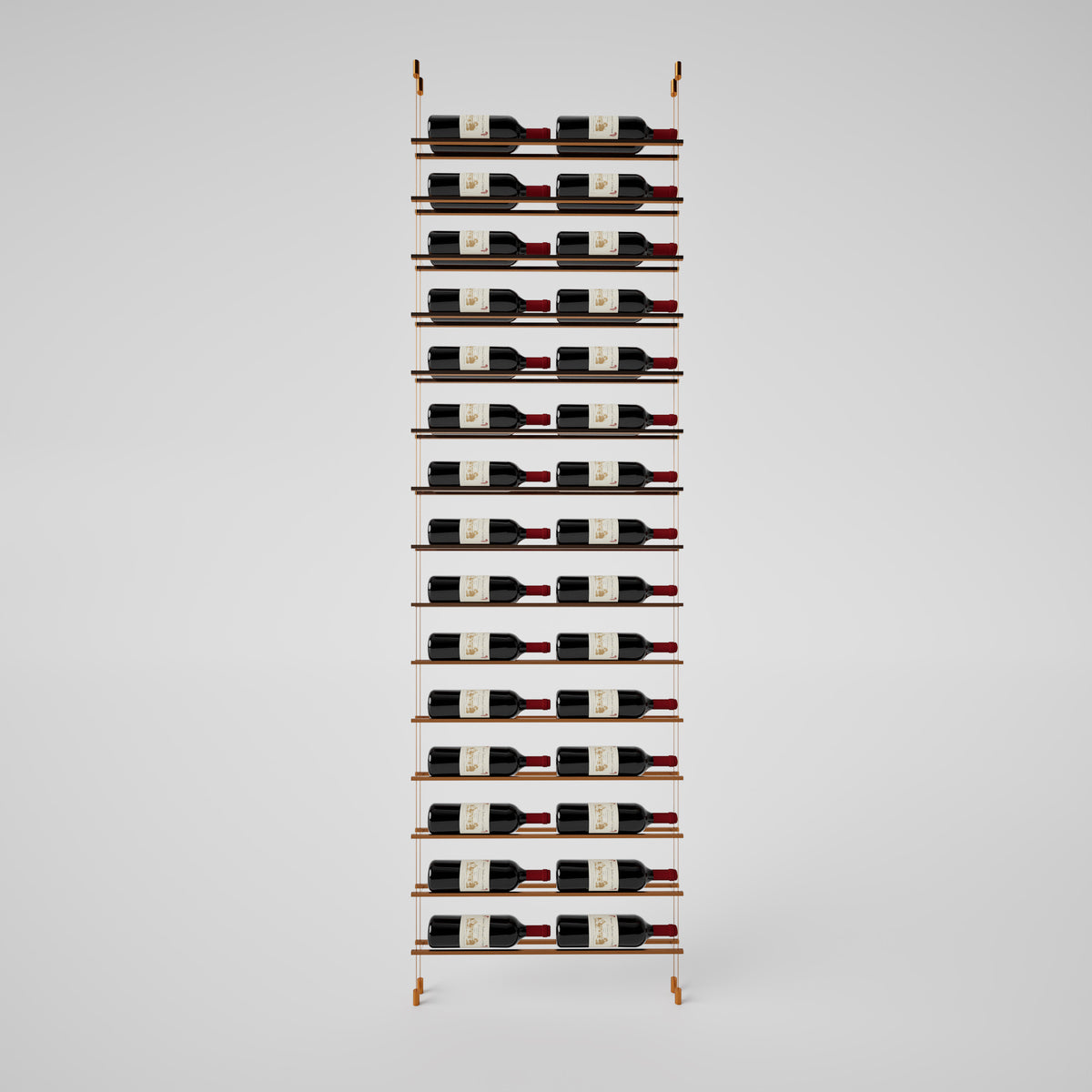

Double Skyline display system — Single Skyline

01 Overview

A floor-to-ceiling system designed to feel integrated.

Skyline is made to feel planned into the room, with a quiet vertical presence and measured architectural rhythm.

Skyline is a floor-to-ceiling suspended wine display system designed to scale row-by-row to ceiling height. It brings a precise architectural presence to the room while keeping the visual language quiet and refined.

The system is intended to appear built into the space rather than added afterward. Its clean vertical structure suits residential and commercial environments where the display should feel planned, warm, and intentional.

02 Key Dimensions

Core measurements for early planning.

Switch between Single and Double Skyline to update the planning dimensions.

Assembly Width

375 mm

Square Rod Length

375 mm

Cable Spacing

350 mm

Edge Offset

12.5 mm

each side

Vertical Row Spacing

150 mm

Typical

Cable Increment Pattern

50 mm

03 Visual Planning

Thin-line drawings for placement and spacing.

Use the toggle above to view Single or Double Skyline spacing relationships.

Dimension A: Top clearance from the ceiling anchor area to the first bottle row. Dimension B: Bottom clearance from the last bottle row to the floor anchor area. Both dimensions vary based on the selected overall height and row count.

For multi-column layouts, additional cable positions follow a 50 mm increment pattern for consistent spacing and alignment.

04 Height & Bottle Capacity

Row planning by selected height.

Bottle count equals row count for Single Skyline and row count times two for Double Skyline.

Height	Rows / bottles
6'-0" (1.83 m)	11 Rows/ 11 Bottles
6'-6" (1.98 m)	12 Rows/ 12 Bottles
7'-0" (2.13 m)	13 Rows/ 13 Bottles
7'-6" (2.27 m)	14 Rows/ 14 Bottles
8'-0" (2.44 m)	15 Rows/ 15 Bottles
8'-6" (2.59 m)	16 Rows/ 16 Bottles
9'-0" (2.74 m)	17 Rows/ 17 Bottles
9'-6" (2.90 m)	18 Rows/ 18 Bottles
10'-0" (3.05 m)	19 Rows/ 19 Bottles
10'-6" (3.20 m)	20 Rows/ 20 Bottles
11'-0" (3.35 m)	21 Rows/ 21 Bottles
11'-6" (3.51 m)	22 Rows/ 22 Bottles
12'-0" (3.66 m)	23 Rows/ 23 Bottles
12'-6" (3.81 m)	24 Rows/ 24 Bottles
13'-0" (3.96 m)	25 Rows/ 25 Bottles
13'-6" (4.12 m)	26 Rows/ 26 Bottles
14'-0" (4.27 m)	27 Rows/ 27 Bottles

6'-0" (1.83 m) 11 Rows/ 11 Bottles

6'-6" (1.98 m) 12 Rows/ 12 Bottles

7'-0" (2.13 m) 13 Rows/ 13 Bottles

7'-6" (2.27 m) 14 Rows/ 14 Bottles

8'-0" (2.44 m) 15 Rows/ 15 Bottles

8'-6" (2.59 m) 16 Rows/ 16 Bottles

9'-0" (2.74 m) 17 Rows/ 17 Bottles

9'-6" (2.90 m) 18 Rows/ 18 Bottles

10'-0" (3.05 m) 19 Rows/ 19 Bottles

10'-6" (3.20 m) 20 Rows/ 20 Bottles

11'-0" (3.35 m) 21 Rows/ 21 Bottles

11'-6" (3.51 m) 22 Rows/ 22 Bottles

12'-0" (3.66 m) 23 Rows/ 23 Bottles

12'-6" (3.81 m) 24 Rows/ 24 Bottles

13'-0" (3.96 m) 25 Rows/ 25 Bottles

13'-6" (4.12 m) 26 Rows/ 26 Bottles

14'-0" (4.27 m) 27 Rows/ 27 Bottles

05 Product Details

Buyer-ready specifications for planning.

Core specification rows remain editable in the theme editor.

Material

Anodized aluminum rods

Anchor Assembly

Aluminum hardware with select stainless steel components

Lead Time

Made to order. Typical production lead time is 4-6 weeks.

Bottle Compatibility

Designed for standard Bordeaux, Burgundy, and Champagne bottles. Most typical bottle formats fit within the 350 mm spacing. Larger or wider bottles may feel tighter depending on bottle shape.

06 Tools Required

Simple preparation before installation.

Tool requirements can be adjusted to match installation documentation.

Cordless drill/driver

Pencil

Self-leveling laser level

.050" Allen wrench

1/4" wrench

Ladder

07 Ceiling Preparation

Backing should be confirmed before placement.

Use this section to communicate structural preparation before installation.

Cable-supported installations require solid structural backing above the ceiling finish. Drywall alone is not suitable for supporting the anchor assemblies.

All top anchor assembly screws must be driven into solid wood framing or blocking, with a minimum of 1-1/2 inches of thread embedded into the wood.

Acceptable backing may include doubled 3/4-inch plywood or standard 2x4 framing installed within the ceiling structure.

Important: Confirm solid backing before installation. Do not fasten the cable system into drywall only.

08 Included Components

What ships with the system.

Component copy updates from Single to Double Skyline.

Pre-assembled Single Skyline rack

The Single Skyline display arrives pre-assembled for a cleaner planning and installation process.

Anchor hardware

Required anchor hardware for the display system is included with the Single Skyline assembly.

Each Single Skyline system includes the pre-assembled rack and required anchor hardware for the display system. Site-specific fasteners, backing preparation, and installation tools may vary depending on ceiling and floor conditions.

09 Finish Options

Four anodized finish options.

Single Skyline is available in four anodized finish options from the Skyline collection.

View Skyline Finish Options

Brushed Silver

A quiet anodized tone for linen, plaster, and white oak spaces.

Brushed Matte Black

An architectural finish for smoked oak, concrete, and walnut.

Brushed Bronze

A warm finish that sits naturally with walnut and limewash.

Brushed Gold

A luminous anodized tone for marble, brass, and off-whites.

10 Weight Capacity & Safety

Designed around distributed support.

Safety copy can be maintained independently from the rest of the page.

Each anchor has been tested under real-world conditions to support loads over 200 lbs when installed correctly into suitable structural backing. The Single Skyline system uses eight anchor points, allowing the load to be distributed across the full assembly rather than concentrated at a single point.

While individual anchors have been tested beyond the expected bottle load, the complete eight-anchor installation must always be used.

Proper backing and installation are required for weight capacity and system performance.

11 Site Conditions Disclaimer

Planning guidance depends on site conditions.

Use this area for installation and site-condition disclaimers.

All dimensions, capacities, and installation recommendations are provided for planning purposes only. Final installation requirements may vary based on ceiling structure, floor material, backing conditions, finished surfaces, local building requirements, and installer judgment.

Kvsche does not assume responsibility for inadequate backing, improper fastening, unsuitable site conditions, or installation methods outside the recommended preparation guidelines.

When conditions are uncertain, installation should be reviewed by a qualified contractor or installer before proceeding.
