Is the KoolR Magnum Right for Your Wine Room?

Hudson Bale July 20, 2026

When a KoolR Magnum plan reaches me, I start with the room, not the bottle count. The unit is designed for an enclosed, insulated wine room and sends the heat it removes through the wall into another conditioned interior space. If the door leaks, the enclosure breaks at the floor, or the warm side traps heat, I do not consider the plan ready.

From the wine-room side, a drawing can look settled. The racks are evenly spaced. The unit sits neatly above the door. The lighting is resolved. Then I ask what is on the other side of that wall, and someone says it is a shallow laundry closet filled with shelving.

That answer changes the plan.

A through-the-wall cooling unit has two working sides. At Kvsche, we plan for both before our installers open the wall.

What I am asking the KoolR Magnum to do

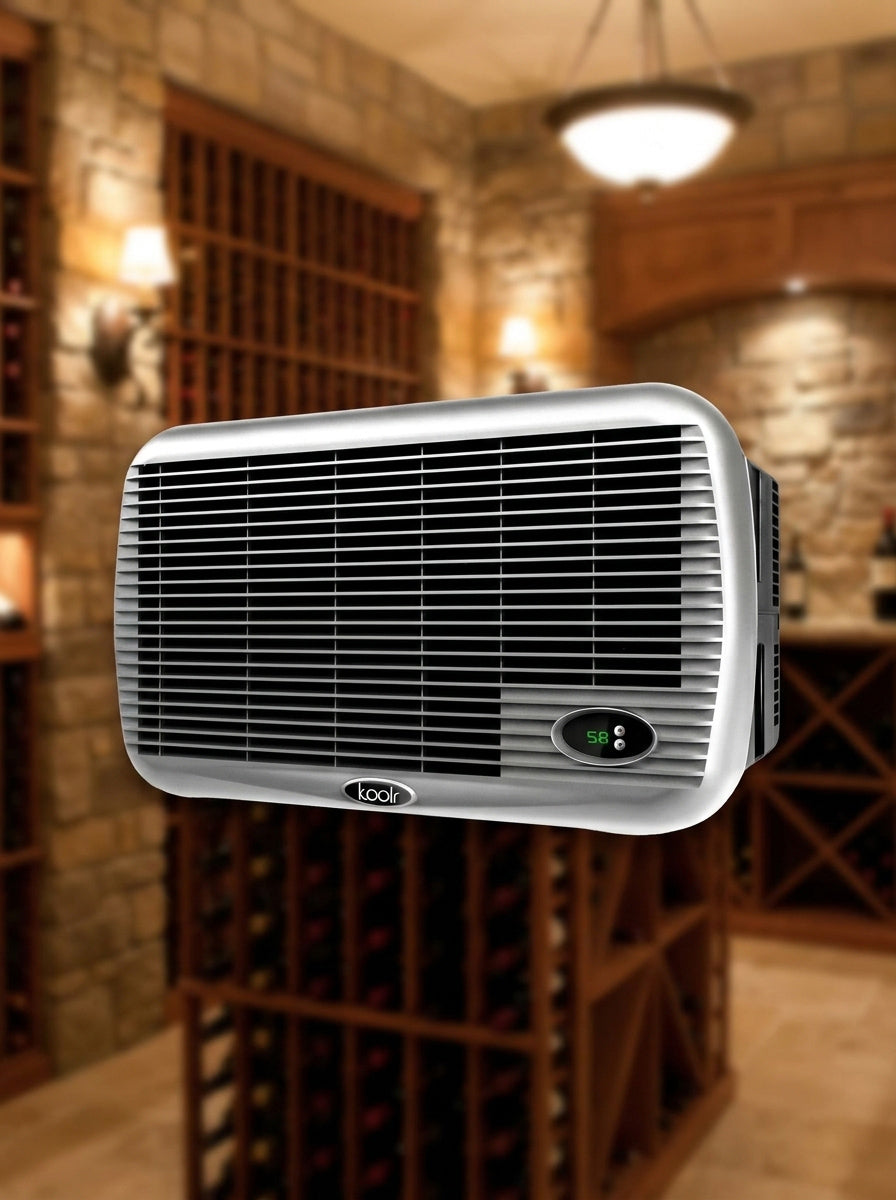

The KoolR Magnum removes heat from an enclosed wine room and releases it into the room on the opposite side of the wall. The face inside the wine room is the cool side. The face in the adjoining room is the warm side.

The unit can move heat. It cannot create the enclosure around itself.

Walls, floor, ceiling, door, glass, and sealed joints all have to help hold the cooler conditions. If the display is open to a dining room or hallway, there is no contained room for the unit to condition. The same distinction applies to the racking. A wine rack supports and displays bottles, but it does not control temperature or humidity.

This is why I do not treat the KoolR Magnum as an accessory for an open wine wall. It belongs in a room built for climate-controlled storage. Before comparing it with other cooling formats, review the KoolR Magnum product details and current manuals.

I begin with the room, not the capacity headline

When we review a proposed wine room, I mentally trace the enclosure from wall to wall, across the ceiling, down through the floor, and around the closed door.

If that line passes over bare concrete, through an uncertain glass assembly, or under a door with visible daylight, an advertised room-volume figure cannot tell me enough.

Room volume still matters. It is the first measurement, not the final decision. Glass, exterior exposure, surrounding temperature, lighting, air leakage, and frequent door use all change the cooling load. A small room with a loose glass door can ask more of a cooling unit than a larger room with a continuous insulated envelope.

Bottle count tells me even less. Two rooms can hold the same number of bottles and behave very differently after their doors close.

This is also why I am cautious with capacity figures found on retailer pages. Current KoolR listings do not all agree on capacity, dimensions, or wall requirements. For the unit Kvsche is supplying, I use the physical template and the current manuals linked from our product page.

Then I choose the wall

With the KoolR Magnum, the wall becomes part of the equipment plan. The unit passes through an interior wall near the ceiling. Its cool side faces the wine room, and its warm side faces the adjoining interior space.

The KoolR installation template presents an over-the-door position as the recommended arrangement and shows open space around the unit for airflow. That can be a logical starting point, but I still want our installers to know what is inside the proposed wall and what role that wall performs in the building.

The KoolR use and care guide states that the unit must not be installed in a fire wall, fire barrier, or fire partition. Structure, wiring, plumbing, and local requirements can also eliminate what appeared to be a convenient position on the drawing.

If the wall condition is uncertain, I want that uncertainty identified before cutting. A qualified contractor or electrician should review conditions that fall within their responsibility.

The KoolR manual calls for the walls, floor, and ceiling to be insulated to at least R-20 and protected by a vapor barrier. It also calls for an insulated door with a weather seal. Joints, switches, outlets, and the area around the frame need to be considered as part of the same enclosure.

These details receive little attention in a finished rendering. They become much less subtle after the system starts running.

If I can see light beneath the closed door, conditioned air has an exit. If an uninsulated concrete floor sits outside the thermal envelope, it can introduce heat and moisture. If most of one wall is glass, I do not count it as though it behaves like an insulated framed wall. That room deserves a proper heat-load review.

Our installers would rather stop at this stage and correct the room than fit the equipment and hope it compensates for the construction. That is not hesitation. It is the least disruptive time to solve the problem.

I turn around and inspect the warm side

Once the wine-room side makes sense, I walk through the doorway and look at the room receiving the exhaust heat.

The manual requires an adjoining, ventilated, air-conditioned interior space. That space has to absorb and disperse the heat leaving the wine room without allowing it to collect around the KoolR grille.

A large, conditioned family room may be a workable proposed location, subject to the complete fitment review. A narrow laundry closet filled with detergent, towels, and shelving is a different situation. A louvered door does not automatically give a cramped room the volume or airflow it needs. Heat can still gather near the unit.

The guide rules out a garage, outdoor venting, improvised ductwork, and small rooms that trap warm air. It also gives operating conditions for the exhaust side. Under the conditions stated in the current guide, that air must be at least 65°F and no warmer than 80°F at 70% relative humidity. The guide also limits the difference between the surrounding temperature and the desired storage temperature.

I check those figures against the current manual for the actual unit and the real room. I do not assume that because the unit physically fits through the wall, the warm-side location is acceptable.

Our installers put power, airflow, and racking on one drawing

The KoolR use and care guide calls for a dedicated, separately fused, grounded 15-amp, 115-volt electrical supply within reach of the cord on the cool side. The circuit cannot be shared. The plug must remain accessible, extension cords are prohibited, and the manual calls for surge protection. A qualified electrician should confirm the circuit, outlet position, and applicable local requirements.

Then we add the wine racks to the same elevation.

This catches a surprisingly ordinary planning mistake: the cooling unit and the racking were designed separately, so a shelf, cabinet, or bottle row ends up in the air path when the drawings are combined.

The warm-side grille needs clear space. On the cool side, racking should not crowd the sides of the unit or sit directly underneath it. Bottles placed in the direct cold-air path can experience different local conditions from bottles elsewhere in the room.

My instruction to our installers is simple. If the racks and the equipment compete on the drawing, resolve the conflict on the drawing.

What I need before I can advise you

I do not need a polished architectural set to begin reviewing a proposed room. A measured sketch, photographs, and clear construction notes are often more useful than a beautiful rendering that hides the wall conditions.

Please send us:

the finished internal length, width, and height;
the project location and whether the room is above or below grade;
the wall, ceiling, and floor construction, including insulation and vapor-barrier details;
the door construction and seal;
the dimensions and construction of any glass;
exterior exposure, nearby heat sources, and lighting;
the desired storage temperature;
the proposed unit wall and photographs of both sides;
the room on the warm side and its expected temperature and ventilation; and
the proposed electrical and wine-rack layout.

Tell me if the wall may be structural or fire-rated. If you do not know, write that down too. An identified question is safer than a buried assumption.

You can send your room details to Kvsche for fitment guidance before ordering the unit or opening the wall.

When I would move away from a through-the-wall unit

There are rooms where the KoolR Magnum makes sense and rooms where the format is fighting the architecture.

If the only possible wall backs onto a garage, the exterior, or a small closet, there may be nowhere appropriate for the warm-side air to go. A fire separation or structural condition can eliminate the obvious position. Some projects also need the heat, sound, or visible equipment located farther from the wine room.

Extensive glass, strong exterior exposure, or uncertain construction can justify a formal heat-load review before equipment is selected. Ducted and split systems approach placement differently, although they introduce different installation and service requirements. A qualified wine-cellar or HVAC professional can compare those formats using the actual room conditions.

If the design remains open to the rest of the home, a wine-cellar cooling unit cannot turn it into a controlled enclosure. That project needs a different decision. It may be better served by an open architectural display, a self-contained wine cabinet, or a properly constructed cooled room.

I would rather say that early than sell a unit into the wrong conditions.

The checklist I use before ordering

Confirm that the wine room will be fully enclosed.
Measure from the finished interior surfaces.
Confirm that the walls, ceiling, and floor can meet the current insulation and vapor-barrier requirements.
Specify an insulated door sealed around its full perimeter.
Document glass, exterior exposure, lighting, and nearby heat sources.
Review the proposed wall for structure, fire separation, wiring, and plumbing.
Confirm that the warm side faces a conditioned, ventilated interior space permitted by the current manual.
Confirm that the warm-side temperature can remain within the manual's operating conditions.
Have a qualified electrician confirm the dedicated supply and outlet location.
Keep racks, cabinets, and stored objects clear of both sides of the unit.
Review the exact installation and use and care manuals.
Send Kvsche the room details and wall plan for fitment guidance.

Before our installers open the wall

Most KoolR fitment problems are visible before the unit is ordered. A leaking door, an uninsulated floor, or a warm side ending in a cramped closet will not improve after the drywall is cut.

I would rather slow the project down while it is still a drawing than approve a placement that asks the KoolR Magnum to work in the wrong conditions. Send us the room measurements, construction details, proposed wall, and warm-side location through the Kvsche contact page. We will review the direction with you, and the current KoolR manuals will remain the final technical reference before installation.
