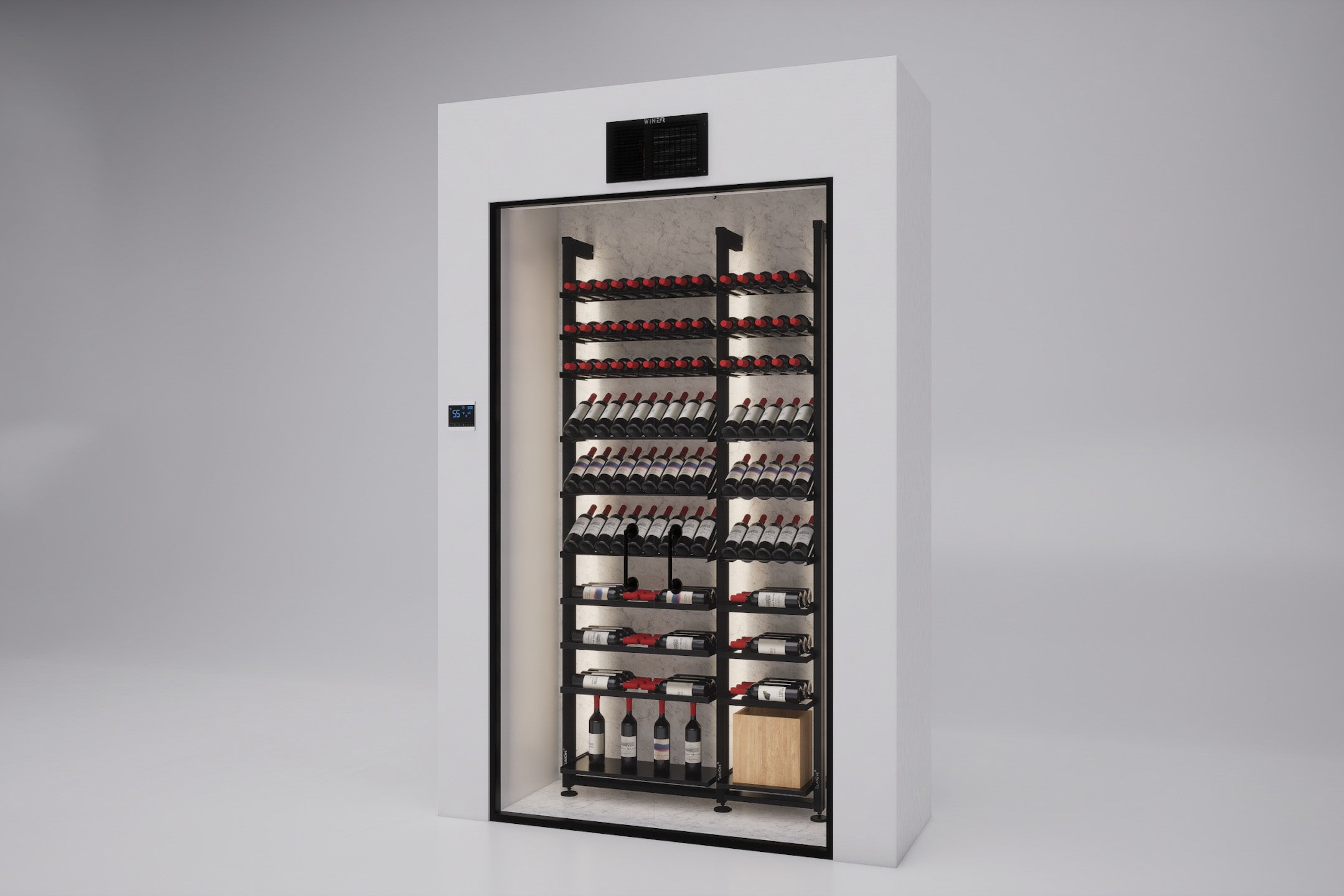

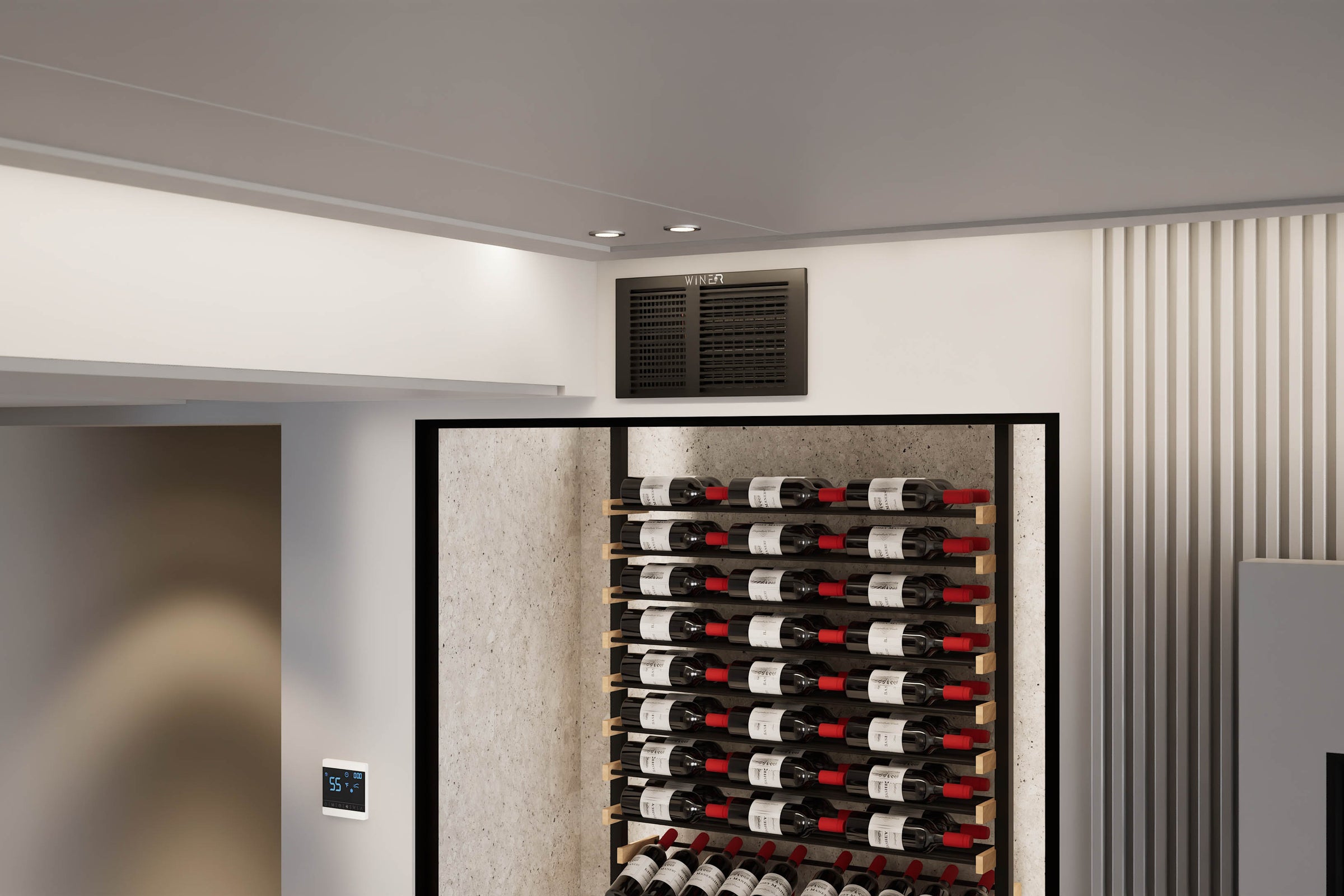

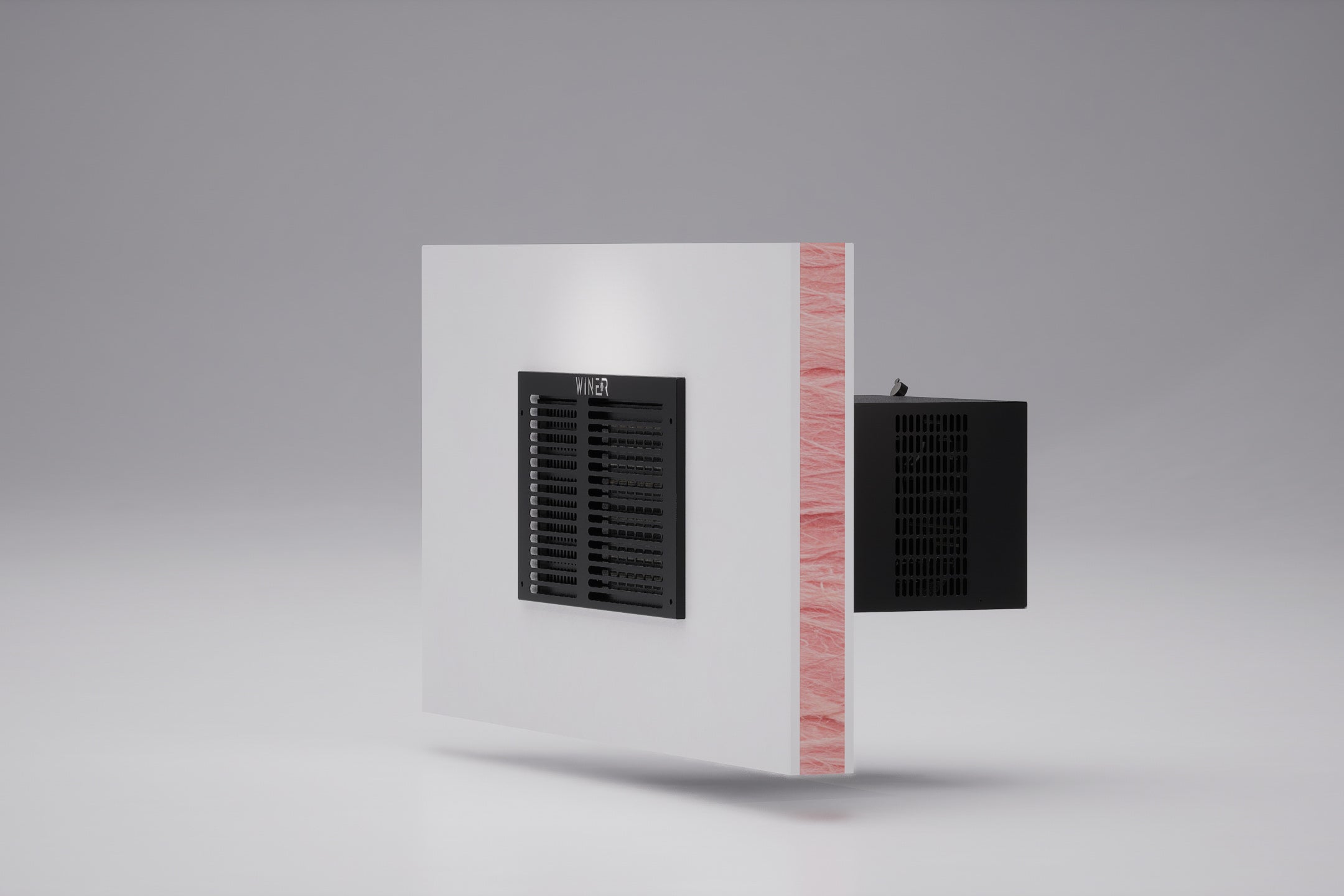

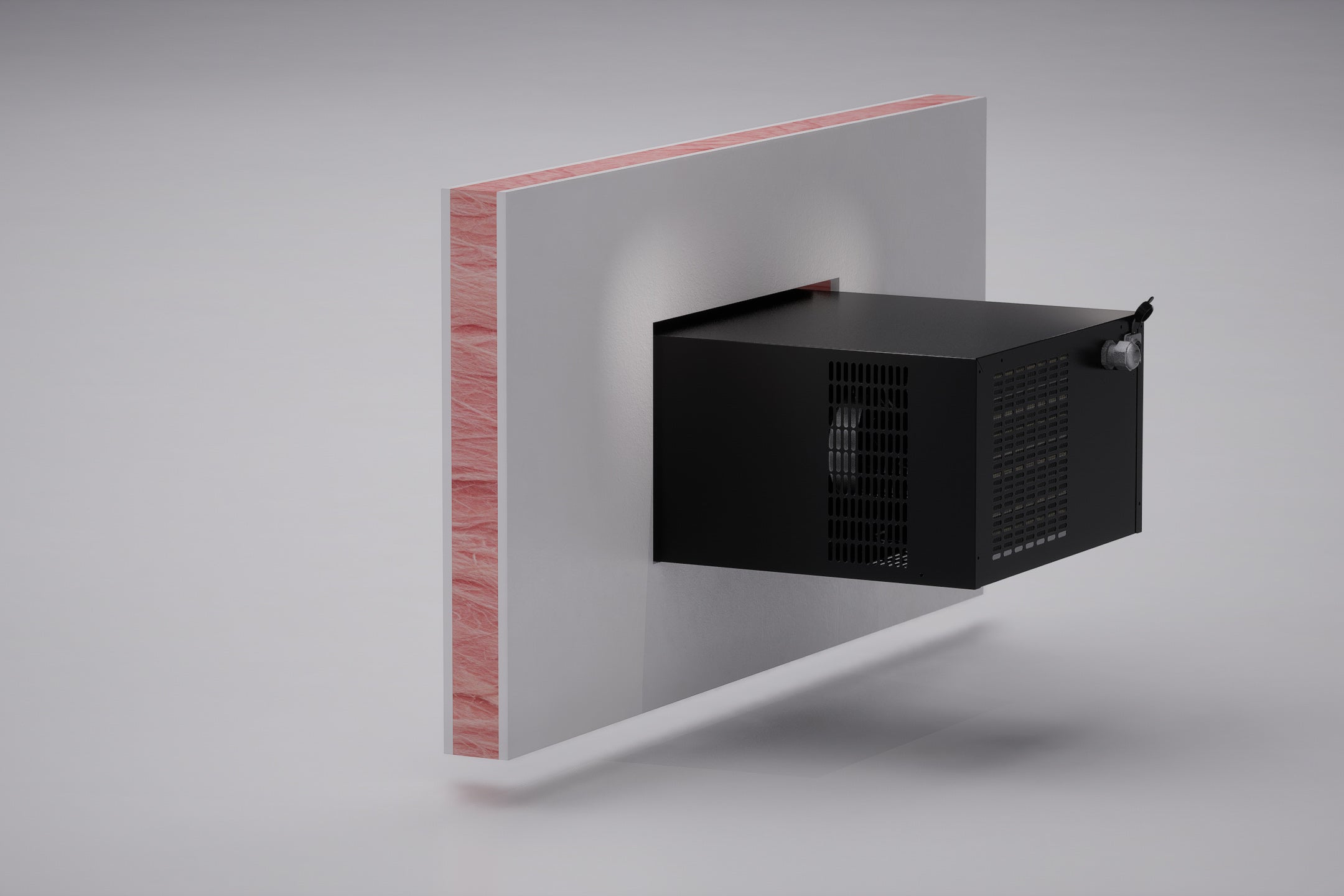

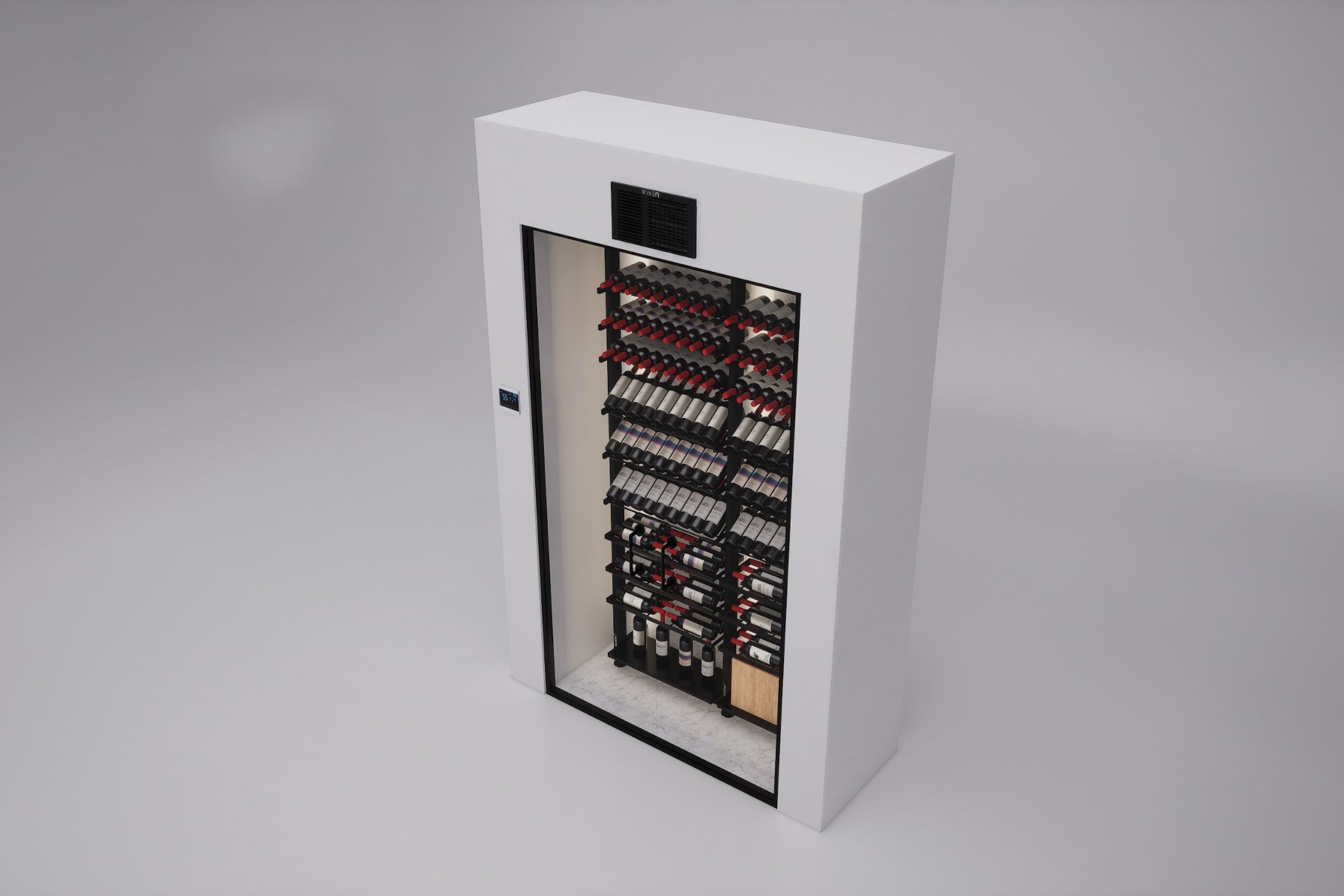

Wine-R WR2500 installed above a wine-cellar door
01 / 05

Above-door wine-room cooling

Wine-R WR2500

A compact through-wall cooling unit with 2,337 BTU/h of nominal capacity for properly constructed indoor wine rooms.

Wine-R WR2500 $2,450.00
In stock

Fitment review available before purchase. Kvsche can review your room and installation plan.

Qty
Ask Kvsche to review fitment
Nominal capacity Up to 900 ft³Fully enclosed. 700 CuFt with Glass enclosure*
Above-door cutout 15⅝ × 9¼ in397 × 235 mm
Thermostat range 50–77°F10–25°C
Limited warranty 2 yearsParts only; registration required
The WR2500 is a precise fit when the room's calculated heat load, above-door opening, insulated envelope, drain, and warm-side ventilation are all confirmed before purchase.

Delivery timing shown at checkout. Choose from the available shipping options before payment.

24-hour cancellation window. Cooling-unit orders may be cancelled within 24 hours of purchase.

Two-year limited parts warranty. Register with Wine-R within 30 days to activate coverage.

Three checks before you buy

Confirm the heat load, the opening, and the warm side.

01 / Heat load

Will it cool my room?

The WR2500 provides 2,337 BTU/h of nominal cooling. Suitability is determined by calculated heat load—not room volume alone. Glass area, exterior exposure, insulation, air leakage, door use, and warm-side recirculation all affect performance.

02 / Cutout

Will it fit above my door?

Plan a 15⅝-inch-wide by 9¼-inch-high cutout. The unit is 15.35 inches wide, 16.22 inches deep, and 8.78 inches high. Allow service access and confirm that the soffit or wall can accommodate the full depth before cutting.

03 / Conditions

What does installation require?

The wine room needs R-20 insulation on every side and floor, a continuous sealed vapor barrier, double-pane sealed glass, and a gasketed insulated door. Mount through an interior wall and ventilate the warm side so rejected heat cannot recirculate.

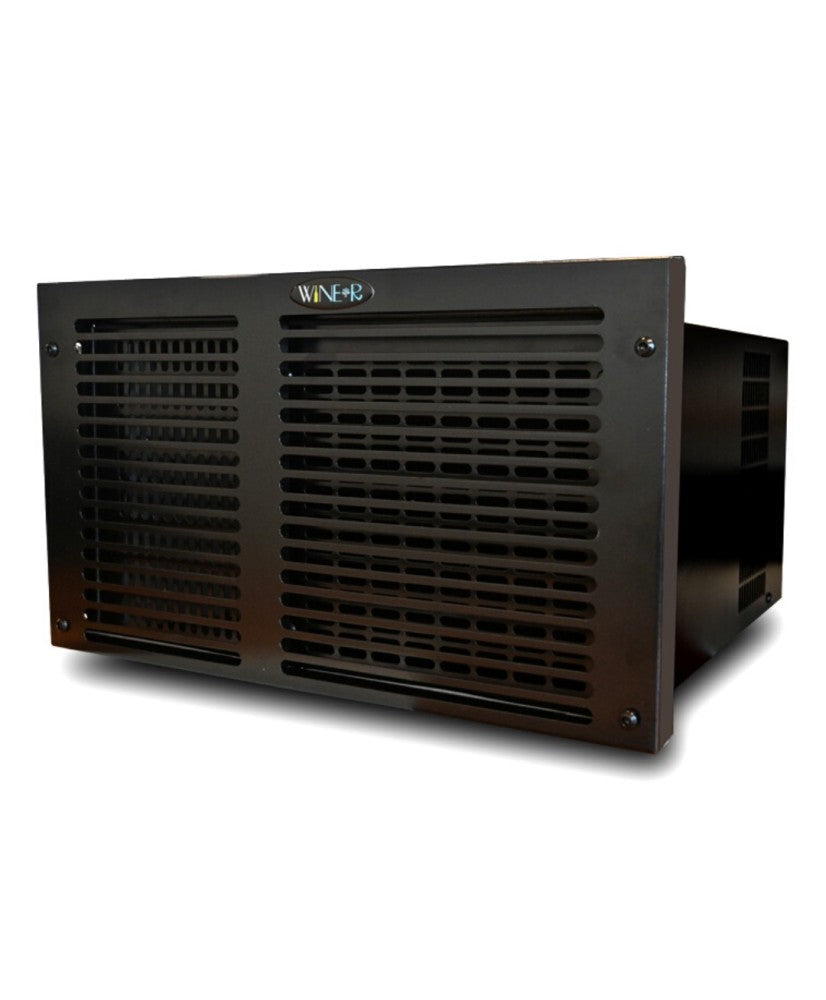

Wine-R WR2500 through-the-wall wine cellar cooling unit
Wine-R WR2500 digital control panel

Installation overview

Build the cellar correctly before cutting the opening.

The WR2500 depends on the room envelope and the adjacent warm-side space as much as the unit itself. Confirm these mandatory conditions before ordering trades or cutting above the door.

  • Insulate all walls and the floor to R-20 or better, continue the vapor barrier without gaps, and seal every outlet, light box, corner, door frame, and pipe penetration.
  • Use only double-pane sealed glass. Large glass areas increase the heat load even when the glazing meets this requirement.
  • Mount through an interior wall—never an exterior wall. Keep at least 12 inches clear on the cold side and 18 inches clear on the warm side.
  • Ventilate the warm side continuously and prevent hot exhaust from returning to the condenser intake. Enclosed closets or cabinets require active intake and exhaust ventilation.
  • Connect the drain hose firmly and maintain a continuous downhill slope without sags or traps.
  • Provide a dedicated 115V, 60Hz, 15A outlet. Do not use extension cords, switch-controlled outlets, or a shared circuit.

This overview does not replace the current Wine-R Installation & Care Guide. Site conditions vary; use a qualified installer or electrician where required.

Key specifications

Model
WR2500
Nominal cooling capacity
2,337 BTU/h / 0.685 kW
Airflow
Approximately 125 CFM / 212.4 m³/h
Electrical
115V, 60Hz, dedicated 15A circuit
Thermostat range
50–77°F / 10–25°C
Drain connection
3/8 in ID hose; some earlier units use 1/4 in
Above-door cutout
15⅝ W × 9¼ H in / 397 × 235 mm
Unit dimensions
15.35 W × 16.22 D × 8.78 H in
Approximate weight
42 lb / 19 kg
Airflow clearance
12 in cold side; 18 in warm side
Recommended warm-side ambient
50–90°F / 10–32°C
Required room envelope
R-20 minimum; continuous vapor barrier; double-pane sealed glass

Warranty and service

Clear coverage. Fast documentation. One Kvsche contact.

Two-year parts-only warranty

For the original purchaser in Canada and the United States, Wine-R covers replacement of an eligible component that fails during normal use within two years of the original purchase date.

Register and document promptly

Register with Wine-R within 30 days of purchase. Report a discovered defect in writing within 15 days and retain proof of purchase.

Register with Wine-R

Arrives damaged? Photograph it within 48 hours

Contact Kvsche immediately with delivery photos and proof of purchase. Shipping damage is separate from the parts warranty and must be reported with photos within 48 hours of delivery.

Kvsche coordinates the service path

Kvsche will help document and coordinate the Wine-R manufacturer process for eligible claims. Labor, diagnosis, removal, reinstallation, and owner-arranged transport are not included in the parts-only warranty.

Optional add-on warranty

Additional warranty packages may be available. Contact Kvsche to confirm eligibility and pricing.

Ask Kvsche

The Cool Side of Wine

Planning notes for a confident WR2500 installation.

Sizing Article 01

Replacing a KoolR Magnum with a Wine-R WR2500?

Replacing a KoolR Magnum? Learn what to measure and verify before choosing a Wine-R WR2500 for an existing through-the-wall cellar opening.

Read article
Buying context Article 02

Wine fridge or wine-room cooling unit?

Understand when through-wall cellar cooling is the right category before comparing WR2500 fit and heat load.

Read the article

Downloads

Read the full guide before installation.

View Installation & Care Guide Open PDF Download Wine-R user guide Open PDF

Fitment support

Still unsure whether the WR2500 fits?

Send Kvsche your room dimensions, glass coverage, insulation details, door construction, warm-side conditions, and planned opening for a practical fitment review.

Contact Kvsche
